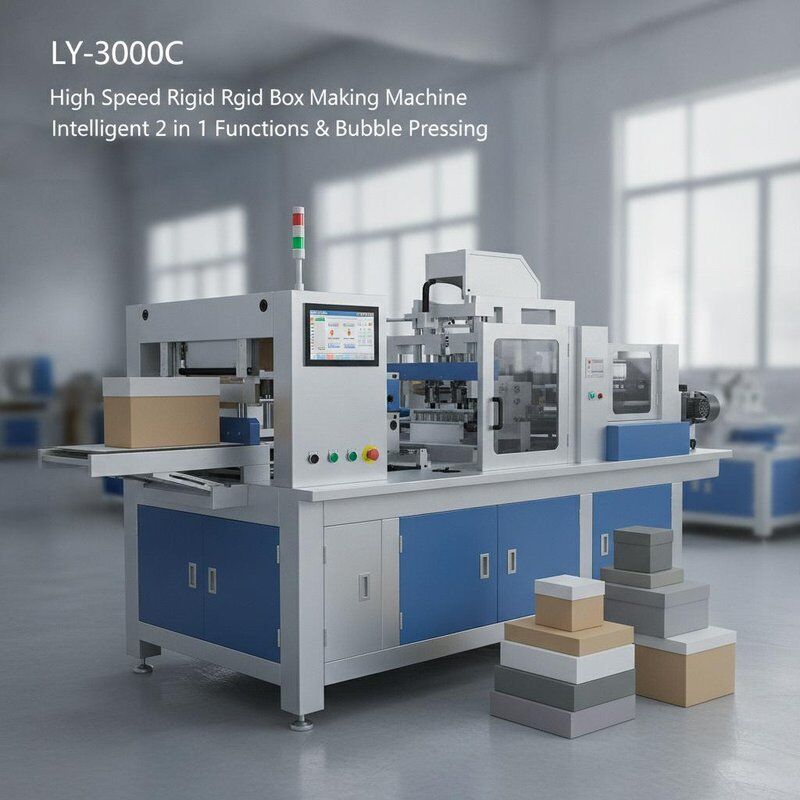

LY- 3000C High Speed Rigid Box Making Machine with Intelligent 2 in 1 Functions and Bubble Pressing for Enhanced Packaging Output

• Shortest Change-over-time, thereby saving precious machine time
• Uses highly accurate Visual Robot arm positioning with German multiple camera system
• Dual Forming stations for high output
• Includes in-line Bubble pressing module
• Production speed up to 70 pcs/min for do one size production
• Positioning accuracy ±0.05mm
• Change-over-time (job transfer time) in 40 Minute
• Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…

Excel cut consists of following sections

Feeder

1. Feeder is controlled by a servo motor.
2. Paper-feed-in overturn function.
3. Big diameter pneumatic vacuum control valves.
4. The rubber pressure roller for the feeding-in paper.
5. Antistatic platform for paper.
6. The automatic lifting function for feeding stack.
7. Feeding stack auto stop when top paper in position Feeder control by servo motor.

8. Independent controlled paper feeding table and independently controlled sheet roller.

9. Avoid the inconsistency of the length of the paper between the two sheets.

Positioning

1. YAMAHA Robot Arm for spotting the box.

2. Camera with in 10 million Pixel tracing system,positioning accuracy can reach 0.05mm.

3. Four Cameras with obots arms working XY Spool for positioning.

Corner pasting


1. Adopt none top suction after the box is formed,reduce labor cost for stay Inline.

2.Secure it with a downward-pulling suction, allowing the tray to stable fall onto the conveyor belt.

3.Conveyor belt feeding system simultaneously transports two matching boxes of different sizes to the positioning section.

4. Easy to set up, tape width in 19mm.

Forming Part (within bubble pressing function, no need bubble pressing machine)


1. Automatic setting by servo motors.

2. Dual Station smart wrapper for increased production.

3. With a bubble pressing function, eliminating the need for a separate bubble pressing machine.

4. Alarm device for collision detection.

5. Lift the box by holding the side of the box. Scratch resistant for the paper.

6.The minimum forming dimensions is 45*45*15mm.

  The maximum forming dimensions is 550*400*130mm,

multiple to do big size box without corner pasting machine

Thchnological Process



• 1 Hour Service: We respond to service requests within one hour with solution recommendations
• 12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
• Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
• Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
• Pre-sale Service: Comprehensive training programs with professional engineers before delivery
• Sale Services: Installation, debugging, and one week of free training services upon machine arrival
• After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
