Nguồn gốc:
Trung Quốc
Hàng hiệu:
Lishunyuan
Chứng nhận:
CE
Số mô hình:
LY-RM-1113

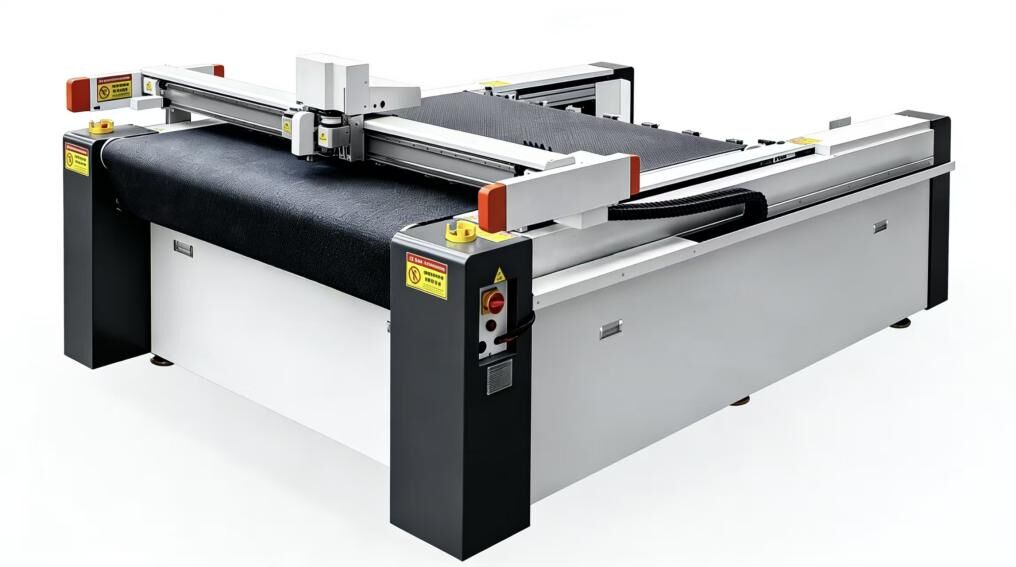

The LY-RM-1113 is a no-die cutting system for small-batch packaging production and sample making. It supports full/half-cut vibration cutting, creasing, drawing, and grooving on materials up to 50mm thick (e.g., corrugated board, greyboard, ABS board, EVA, foam) with ±0.05mm accuracy and a working area of 1100×1300mm. Featuring automatic tool setting, CAD/AI/DXF import, and a built-in vacuum system, it delivers precise, reliable operation.
With a maximum cutting speed of 1200mm/s and two independently driven work heads, the LY-RM-1113 enables continuous multi-tool operation without mold change. Its high frequency oscillating knife and creasing wheel set deliver clean, burr-free edges and uniform creases on both thin and thick materials. Optional camera registration, V-grooving tools for greyboard/paperboard, and a kiss-cut tool for self-adhesive materials further expand its capabilities for rapid prototyping and low-volume custom production.
<img alt="" src=" <p> </p> </div> <div class=" pd-subheading"="" style="font-weight: bold; color: rgb(52, 73, 94); margin: 15px 0px 8px; font-family: Arial, sans-serif; font-size: 18px !important;">
Equipment Features
 |
The integrated steel frame is welded from thickened high-carbon steel, ensuring no deformation or vibration under long-term high-speed operation. It provides stable mechanical performance, guaranteeing cutting accuracy and machine longevity.
|
|
Built-in suction system that intelligently activates vacuum zones based on material size, delivering stronger and more uniform hold-down and significantly improving sheet flatness. It prevents edge lifting and shifting, and is suitable for both thin and thick boards.
|
|
Two independently driven work heads allow multiple tools to operate continuously, and tools are interchangeable between modules. Thus, one machine handles cutting, creasing, grooving, and plotting.With a maximum cutting thickness of 50mm, the machine is compatible with corrugated board, grey board, paperboard, thin foam, leather, and other sheet materials, meeting daily sample-making needs.
|
|
The built-in automatic tool setting system enables one-touch auto-setting and length compensation after a tool change, requiring no manual calibration. This ensures fast changeover with high precision. The high-precision servo-driven transmission system delivers cutting accuracy up to ±0.05mm and produces clean, burr-free edges.
|
|
You can directly import CAD, AI, or DXF files and generate cutting paths with one click, allowing the machine to cut any complex shape with zero learning curve. |
|
Key components are protected against dust and debris, resulting in low failure rates and simple routine maintenance. Additionally, low energy consumption ensures environmentally friendly and cost-effective operation. Intelligent path optimization enables fast processing, shortening the sample-making cycle and allowing quick response to customer sample requests. |
Fuction Examples
|
1.Grooving (V/U-Groove) V/U grooving switchable, one-step forming for rigid & soft materials.
|
|

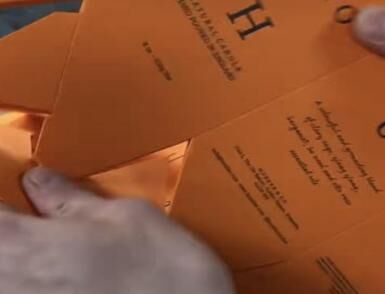

2.Half-Cut Die Cutting Half-cut die cutting, cuts top layer only for easy-tear & connecting parts.
|
|

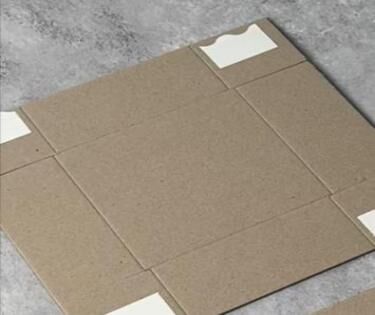

3.Creasing Uniform creasing, no cracking or wrinkling when folding.
|
|
4.Full-Cut Die Cutting No mold required, precise full-through cutting, suit for small-batch sampling. High-precision cutting with no wrinkling on thin paper and no edge bursting on thick paper.
|
|
5.EVA Cutting Special non-stick cutter, smooth and clean EVA cutting.
|
|
6.Corrugated Board Cutting Integrated cutting, creasing, and slotting for accurate reproduction of carton structures.
|
|
7.Adhesive Label Cutting Precision-controlled depth die-cutting that cuts through only the face paper and adhesive layer while leaving the liner intact.
|
|

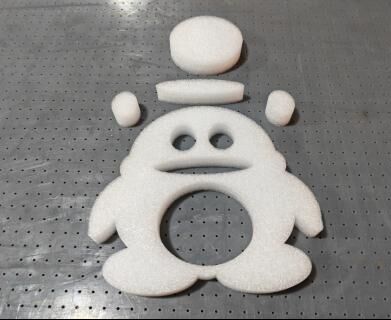

8.EPE Cutting Capable of high-precision cutting of complex contour shapes, suit for various packaging insert processing.
|
|
Specifications
|
|
|
MAX working speed
|
1500mm/s |
|
MAX cutting speed
|
1200mm/s |
|
Working accuracy
|
±0.05mm |
|
Thickness of work piece
|
50mm |
|
Effective working size
|
L1100mm*W1300mm |
|
Power supply
|
380V±10% |
|
Total power
|
4.5/5.5KW |
|
Machine dimension
|
L2100*W3200*H1400mm |
