Name: LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine
Brand: Guangdong Lishunyuan Intelligent Automation Co., Ltd.
SKU: LY-750B
Price: 17500 USD
Availability: InStock

Nhà > các sản phẩm > Box Corner Pasting Machine >

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

LY-750B automatic corner pasting machine

intelligent setup corner pasting machine

sleeve box corner pasting machine

Nguồn gốc:

Trung Quốc

Hàng hiệu:

Lishunyuan

Chứng nhận:

Số mô hình:

LY-750B

Tài liệu:

LY-750B Automatic Corner Pa...up.pdf

Liên hệ với chúng tôi

Yêu cầu Đặt giá

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Chi tiết sản phẩm

Người mẫu:

LY-750B

Khổ giấy tối đa:

740*640mm

Độ dày giấy:

1-4mm

Kích thước hộp (tối đa):

L500*W400*H150mm

Kích thước hộp (tối thiểu):

L80*W60*H20mm

Kích thước hộp tay áo (tối đa):

L400*W120*H150mm

Kích thước hộp tay áo (tối thiểu):

L80*W30*H20mm

Chiều cao chồng giấy:

1000mm

Tốc độ sản xuất:

25-45 chiếc / phút

Nguồn điện:

380V/50Hz

Tổng công suất:

3,88KW

Áp suất không khí:

0,5-0,8MPa

Kích thước chiều rộng băng:

19mm

Trọng lượng máy:

1280kg

Kích thước máy:

2250*2100*2200mm

Làm nổi bật:

LY-750B automatic corner pasting machine

intelligent setup corner pasting machine

sleeve box corner pasting machine

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu

Giá bán

Negotiate

chi tiết đóng gói

thùng phim và ván ép

Thời gian giao hàng

15-20 ngày

Điều khoản thanh toán

T/T

Khả năng cung cấp

15 bộ/tháng

Sản phẩm liên quan

LY-430TJ Máy dán nhiều góc Máy dán góc Máy dán tay áo

Nhận giá tốt nhất

Băng hình

Máy dán góc hộp LY-750 với ứng dụng gia cố góc hoàn toàn tự động để chế biến hộp nhanh và chính xác

Nhận giá tốt nhất

Máy dán góc hộp bán tự động LY-TJ40 Tốc độ vận hành 20 - 40 PCS / phút

Nhận giá tốt nhất

Băng hình

LY-750 85pcs/Min Máy dán góc hoàn toàn tự động

Nhận giá tốt nhất

Liên hệ với chúng tôi

+86-13802379158

aureal@dglyjx.com

86-769-23174590

Liên hệ ngay bây giờ

Mô tả sản phẩm

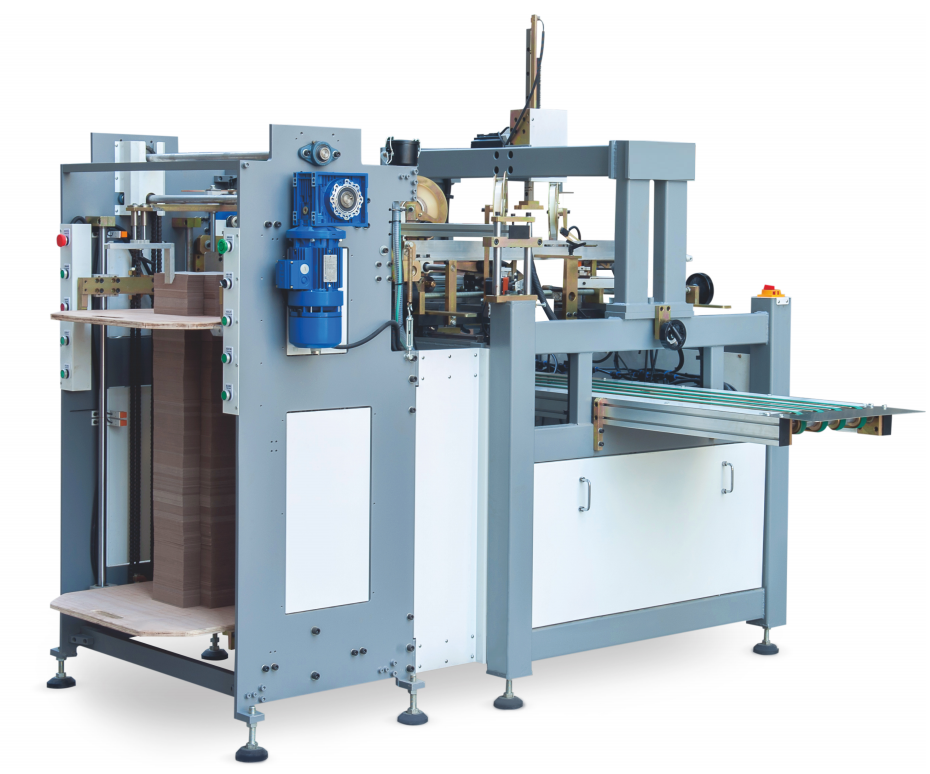

LY-750B Automatic Corner Pasting Machine (Intelligent Setup)

This automatic corner pasting machine is engineered to seamlessly paste corners for rigid and sleeve boxes. Driven by servo motors, the machine ensures accurate tape application via a user-friendly touch screen interface. A high-alloy tape slot prevents jamming, while the bottom feeder design enables non-stop operation, greatly boosting production efficiency for box manufacturers.

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Key Features

Intelligent setup interface system, which is simple, easy to learn, understand and operate.
Setting up time in 10mins.
The full servo drive control system and PLC programming ensure the accuracy and performance of the product.
Non-stop feeding, reduce labor intensity,decrease machine stopping time .
The paper feeding adopts a belt-driven pull-out system, effectively increasing production output.
Compatible with PET and kraft paper tape, providing a variety of options for your products.
The production efficiency of this machine is 3 to 5 times that of traditional manual corner pasting.
Multiple functions able to do square boxes and sleeves boxes.

Product Examples

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Product Types

LY-750B Automatic Corner Pasting Machine (Intelligent Setup) Corner Pasting Machine Sleeve Box Machine

Technical Specification

Model	LY-750B
Maximum paper size	740*640mm
Paper thickness	1-4mm
Box size(max)	L500W400H150mm
Box size(min)	L80W60H20mm
Sleeve box size(max)	L400W120H150mm
Sleeve box size(min)	L80W30H20mm
Paper stack height	1000mm
Production speed	25-45 pcs/min
Power supply	380V/50Hz
Total power	3.88kw
Air pressure	0.5-0.8Mpa
Tape width size	19mm
Machine dimension	255021002200mm
Machine weight	1280kg

Packing and Shipping

Company Profile

Founded in 2001 and based in Dongguan City, Guangdong Province, LiShunyuan operates from a 20,000-square-meter modern standardized workshop. After 18 years of steady development, the company has established comprehensive sales and after-sales service networks throughout China, with products exported to over 40 countries across Europe, America, Southeast Asia, South America, the Middle East, and Africa.

Innovation is LiShunyuan's core competitive strength. The company holds independent intellectual property rights for its product portfolio, covering rigid box machine series and clamshell box machine series. These equipment solutions are widely applied in producing premium gift boxes, mobile phone packaging, cosmetic boxes, wine and liquor boxes, and other high-end boutique packaging.

Our Services & Strengths

We offer industry-competitive machinery, professional quality control, and comprehensive customer service. LiShunyuan provides full-spectrum client support spanning pre-sales consultation, custom machinery development, equipment manufacturing, and thorough after-sales support. We deliver maximum production efficiency, pinpoint precision, and consistent premium quality for boutique packaging, aligned with each client's unique requirements.

Certifications

Quality After-Sales Service Commitment

1 Hour Service: We respond to service requests within one hour with solution recommendations
12 Hours Service: The GM's office handles customer complaints directly and replies within 12 hours with solutions
Reach Within 24 Working Hours: Maintenance teams arrive within 24 working hours for customers within 500km of service points
Monthly Follow-up: Regular customer visits ensure ongoing satisfaction and support
Pre-sale Service: Comprehensive training programs with professional engineers before delivery
Sale Services: Installation, debugging, and one week of free training services upon machine arrival
After-sales Service: Complete customer files, regular performance monitoring, software/hardware updates, and comprehensive spare parts support
