Nguồn gốc:
Trung Quốc
Hàng hiệu:
Lishunyuan
Chứng nhận:
CE
Số mô hình:
LSY-WSM1200
Tài liệu:
Băng hình
Băng hình

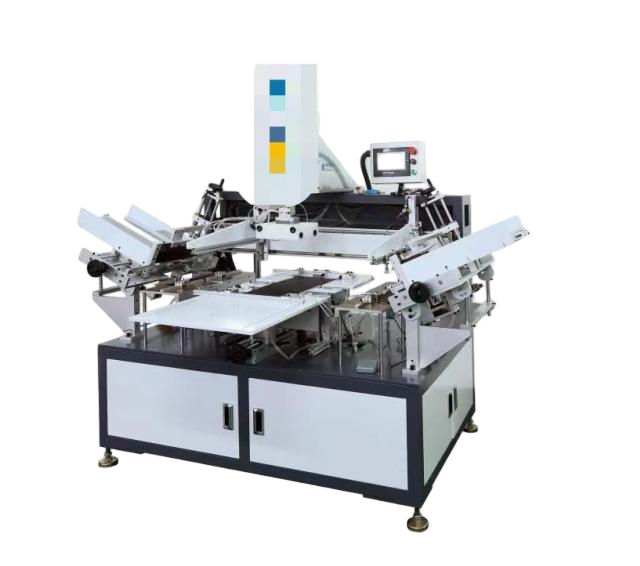

During the collapsible box production, the wings positioning job was a shortcoming in automation industry. We noticed this inconvenience of our clients and decided to tackle this issue. In this case, after years of enthusiasm and devotion, joining with our professional experience, we finally come out with new equipment which can produce the 5-board collapsible box.
Excel cut consists of following sections:
|
The side wing feeding section allows for easy material feeding; Brush is used to prevent scratching the surface during the process; Both sides follow the same structure. |
|
This is the machine control panel, designed for simple and user-friendly operation. |
|
This is the placement area for the cover paper (case), and the position can be freely adjusted according to the size. |
|
Model |
LSY-WSM1200 |
|
Max Cover Size |
L1200*W580 mm |
|
Min Cover Size |
L360*W120 mm |
|
Max Side wing Size |
L700*W150 mm |
|
Min Side wing Size |
L200*W40 mm |
|
Max Outer Distance Between Sides |
880mm |
|
Min Inner Distance Between Sides |
120mm |
|
Working Speed |
≤12pcs/min |
|
Power |
2.5KW |
|
Power Supply |
220V/50Hz |
|
Machine Dimensions |
2550x1700x2000mm |
|
Machine Weight |
400KG |
Example
|
Box type |
Box before wrap |
Finished box |
|

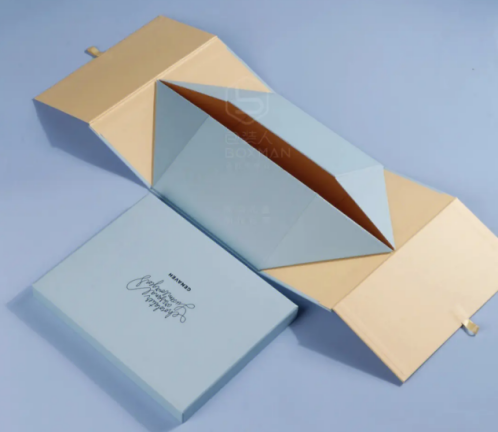

5 pcs Board collapsible box |
|
|
|
|
|
|
|

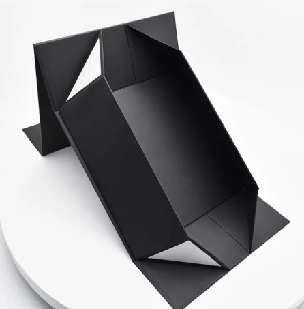

7 pcs Board collapsible box |
|
|
