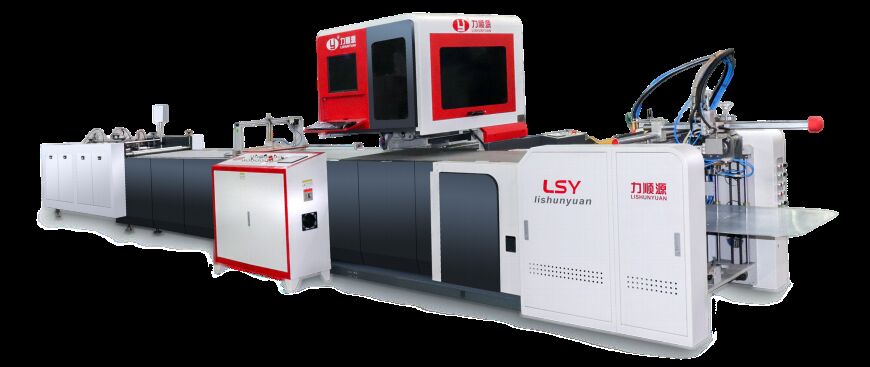

LY-4510C-PK Automatic Hardcover Making Machine ( Visual positioning )
The LY-4510C-PK is a fully automatic hardcover making machine with advanced visual positioning technology. It integrates two high-precision 10-megapixel cameras and a YAMAHA robot arm, achieving a positioning accuracy of ±0.05mm. The machine is capable of producing rigid boxes, hard covers (case maker), and linings either separately or simultaneously, with a production speed of 15–30 pieces per minute. Its modular servo-driven feeding system prevents double sheets and misalignment, while the glue circulation and heating systems ensure consistent adhesive application and easy cleaning.
Equipped with independent servo motors for feeding, rolling, and conveying, the LY-4510C-PK offers strong coordination and reduced setup time. The folding section features belt and servo-controlled wrapping for precise edge alignment without gaps. Key technical parameters include a paper size range of 120–1100mm (L) × 95–600mm (W), cardboard thickness of 1–3mm, and a machine footprint of 9500×2550×2000mm. With over 200 process patents and 100 quality certifications behind its 5th-generation design, this machine delivers reliable, high-precision production for the rigid box and hardcover industry.
Key Features
- Independent control by different servo motor for feeding, avert double sheet and incline.
- Within 2 sets of high precision cameras and YAMAHA robot arm, Positioning accuracy of ± 0.05mm. YAMAHA robot arm are adopted to accurate position all kinds of product , such like hardcover maker, lining,etc.
- Able to production Rigid Box and Hard Cover(Case Maker) and lining.
- Able to production box and case at the same time, Capacity up to15-30 PCS/Min.
- Easy to setup enhance productivity and increase enterprise profit.
Excel cut consists of following sections:
| Feeder |
- Structure of printer’s cam gear. Catching up one piece of paper first and blowing it into the roller, reducing the defective percentage.
- (1) Adopted a circulatory system that is suitable for hot & white glue to avoid splashing glue and reduce your clean time, making the machine working stabilized; (2) Adopted a heating system that heating at regular time and constant temperature to avoid waiting time; (3) With blender(beater) inside, which can stir the glue evenly to ensure the same viscosity of the glue on paper and reduce defective percentage caused by inferior glue;
- The feeder, roller, conveyor belt have their own servo motor and work as a whole with a strong coordination and stability, which can reduce debugging time, enhance productivity and increase enterprise profit.
- The gluing roller is made of medium carbon steel with its surface covered by 304 stainless steel, making your machine much more durable and very easy to be cleaned, which can help you reduce the maintenance cost.
|
|
Positioning
|
- Japan Yamaha Robot Arm for spotting the grey board box.
- Two cameras with Lens in 10million Pixel tracing system.
- Double Camera with XY Spool for positioning.
- Positioning accuracy in 0.01mm.
|
|
Pressing
|
- Multiple robot suck arm able to pick from max size : L840MM W:430MM
- Storage area with two system for feeding board . bottom push and suck push to avoid scratch.
|
| Folding |
- First length side using belt folding.
- Utilizing multiple pressure rollers and a double-layer belt for guidance and compression.
- Ensuring materials are properly aligned and fed without edge gaps or material spillage! Resulting in a denser, more compact finished product.
|
|
|
- Width side using servo control ,easy to setup .
- Timing belt drive ensures synchronized positioning .
- Corner pressing rollers pre-compress edges prior to folding the short edges.
|
|
|
- Short side using pneumatic edge wrapping, ensure not gap on the side.
- Length side suing digital setup on the touch screen , easy setup for change new job.
|
Technical Specification
|
Model
|
LY-4510C-PK |
|
Paper size(L*W)
|
L:120-1100mm W:95-600mm |
|
Size for cover and lining(L*W)
|
L:120-1050mm W:100-500mm |
|
Paper thickness
|
80-300g/㎡ |
|
Maximum pieces of board
|
6 pcs |
|
Minimum spin size
|
30mm |
|
Minimum side board size
|
25mm |
|
Precision accuracy
|
±0.05mm |
|
Speed
|
15-30 sheets/min |
|
Cardboard thickness
|
1-3mm |
|
Power supply
|
380V/220V/50Hz/3phases |
|
Glue tank capacity
|
30kg |
|
Constant power
|
11.5kw |
|
Machine size
|
L9500×W2550×H2000mm |
|
Machine weight
|
3100kg |
Process Flow
For cover and lining:
